» Concrete Mixer

> Reversable Concrete Mixer Machine RM 800 <

Reversable Concrete Mixer Machine RM 800

Chassis : Heavy duty, robost steel chassis from 125x65 mm channel.
Hopper : 800 Ltr (Unmixed) batch capacity.
Capacity : 600 Ltr (Mixed) machine output/ Hr 10 Cu M/Hr
Power : 10 HP Electric Motor 1 nos. / 1 HP 3 phase pump 2 nos.
Mixing Drum : Main drum cell made from 6mm M.S. plate with extra guide roller - 2 nos.
Water Tank Capacity : 120 Ltr
Weighing System : Lood cell based weighing system with digital batch controller.
Hy. Oil Tank/Pipe : 20 Ltr. capacity/R2 quality hose pipe.
Gear Ring & Roller : Accurately Machines with gear cutting operation supported by
heavy duty twin roller guide. (Made from EN-8 material)
Wheels : Pneumatic wheel (6A fac "16) 4 nos.
Jock Leveling : Pin type 4 nos.
Optional Feature : Single, Two or Three bin hopper. (As per received)
Atlas : Mini concrete batching plant / Mini concrete mixers.

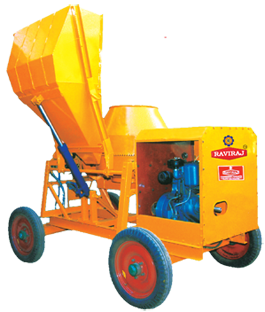

> Fully Hydraulic Concrete Mixer (One Bag) <
Fully Hydraulic Concrete Mixer (One Bag)

Loading Hopper : Designed is according to our R.W.W. Hydraulic system
Power Unit : (1) 8/0 H.P. four stocke air-cooled diesel engine or
(2) 7/5 H.P. electronic motor.
Mixing Drum : Specially shaped mixing blades are provided for
efficient mixing
Dimenesion : Approx
Size : Length 9'6", Height 9'5"
Weight : 1375 kg (Approx)

> 10/7 CFT (One Bag) Concrete Mixer <
One Bag Concrete Mixer

Type : Tilting type with hopper
Capacity : 10/7 CFT or 280/200 Ltrs.
Power : 6.5HP Air Cooled Diesel Engine or Electric Motor.
Road Wheels : Pneumatic / 500 x 19 Size Wheels.
Options : Power operated loader (Hopper) Hand Fed.

> 10/7, 7/5 or 5/3 CFT Concrete Mixer <
CFT Concrete Mixer

Type : Tilting type without hopper
Capacity : 10/7, 7/5 or 5/3 CFT/280/200, 200/140 or 140/85 Ltrs.
Power : 6.5HP Air Cooled Diesel Engine or Electric Motor.
Road Wheels : Pneumatic / 500 x 19 or 3.5 x 8 Size Wheels.

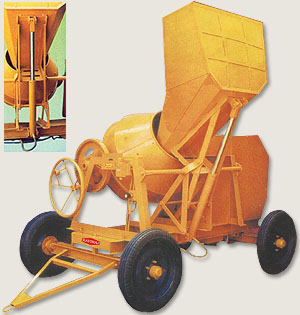

> 10/7 CFT Concrete Mixer (Hydraulic) <
Hydraulic Concrete Mixer

Loading Hopper : Designed is according to our R.W.W. Hydraulic System
Power Unit : (1) 8/0 H.P. four stroke air-cooled diesel engine or
(2) 7/5 H.P. electric motor.
Mixing Drum : Specialty shaped mixing. Blades are provided for efficient mixing.
Dimensions : Approx
Size : Length 9'6", Width 6'8", Height 9'5"
Weight : 1375 Kg. (Approx)
